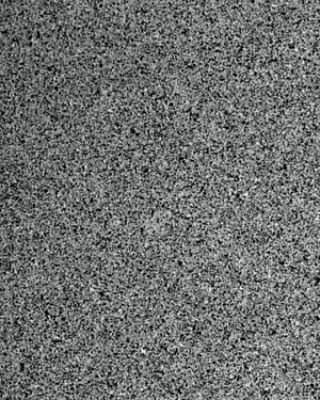

CXTX Graphite

Download Image

CXTX graphite is an economical material used for larger parts in the glass handling process.

Average particle size of less than 5 microns provides moderate strength
Better wear resistance than traditional materials, decreases downtime due to replacements or breakage

Our graphite grades are available as semi-finished rods, blocks, plates, and fully machined parts.

Read More Read Less

Interested in CXT-X Graphite?

Applications

Lehr stacker pads
Fabrication of large glass-handling parts
Applications not requiring high material strength

Specifications

Particle size	5 µm (197 µin)
Apparent density	1.7 g/cm³ (0.061 lb/in³)
Compressive strength	110 MPa (15,900 psi)
Flexural strength¹	68 MPa (9,800 psi)
Shore hardness	71
Coefficient of thermal expansion	7.8 µm/m°C (4.2 µin/in°F)
Thermal conductivity²	85 W/m-K (50 Btu-ft/hr/ft²°F)
Purity	<3000 ppm ash
Oxidation threshold³	450°C (842°F

¹Measured using three-point bend method. ²Approximate values taken at room temperature; as temperature increases, thermal conductivity decreases. ³Oxidation threshold defined as temperature at which oxidation weight loss after 24 hours is approximately 1%. (Size 0.5" x 0.5" x 1").
